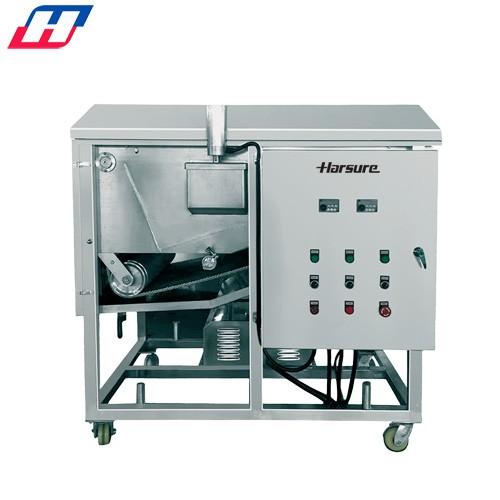

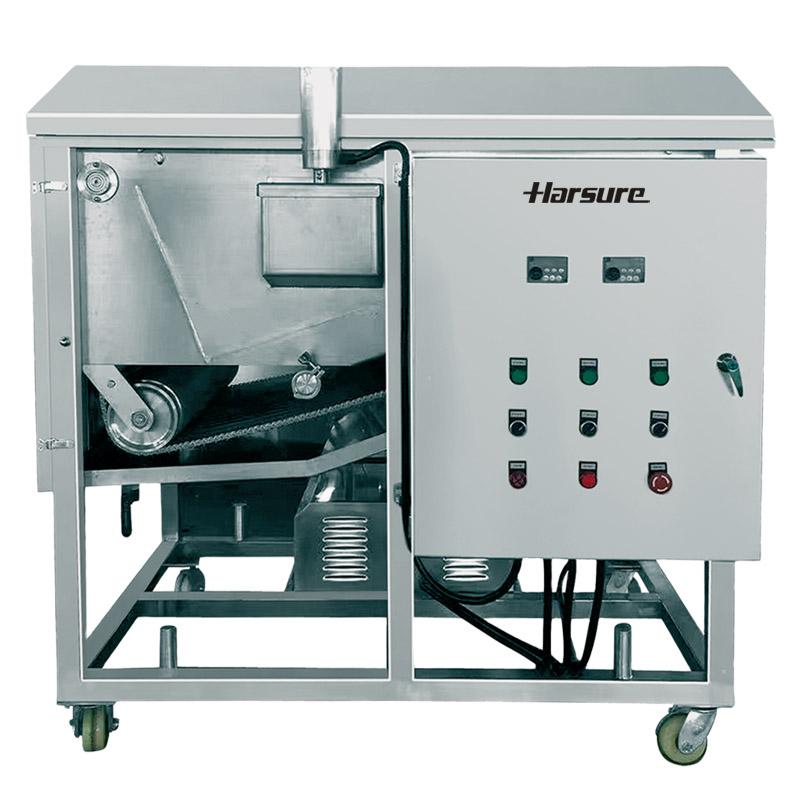

Mechanical Mesh Belt Oil Filter
Product Overview
The mechanical mesh belt oil filter is one of the important auxiliary equipment in the production process of fried food, and it can work synchronously with the frying machine. This machine uses physical methods to effectively filter out particulate impurities, carbides, high molecular polymers and other harmful substances produced in the process of frying food in high-temperature frying oil, which improves the frying environment of food and inhibits the increase of acid value and peroxide value. Improve the utilization rate of food oil, reduce enterprise costs, improve efficiency and product quality.
Product Features
★Large filtering capacity
★Capable of automatic and continuous operation
★The oil level can be controlled automatically
★Filter thoroughly
★No need for filter paper and filter aids
★The equipment runs smoothly and reliably, and has a long service life
| Model | WYJ-800 |
| Filter Method | Continuous filtration, working synchronously with the fryer |
| Particle Size for Filtration | 100μm |
| Oil Temperature Requirements | 120-230℃ |
| Total power | 4.6kW |
| Pump | High Temperature Resistant Cast Steel Pump |
| Flow Rate | 8-10tons/hour（Theoretical Flow Rate） |
| Pump Inlet Height | 295mm |
| Pump Outlet Height | 421mm |
| Inlet Diameter | DN40 |
| Outlet Diameter | DN32 |
| Inlet and Outlet Connections | High Temperature Resistant Stainless Steel Hose |
| Filter Media | 310 Stainless Steel Filter Screen |
| Flter Screen Width | 780mm |
| Chain | High Temperature Resistant Cast Steel Chain |
| Scraping Plate | PTFE Material with Automatic Tensioning Device |
| Equipment Size LxWxH | 1810*1210*1570mm |
