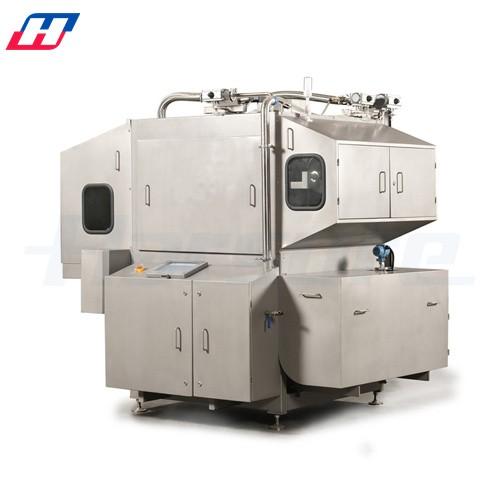

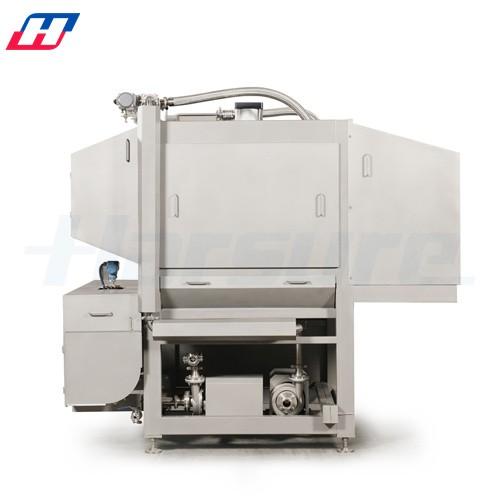

SY1008 Frying Oil Filter
Harsure Frying Oil Filtration System
Clean Oil & Dry Filtered Crumbs
1 Micron Filtration for Industrial Fryer Oil Systems

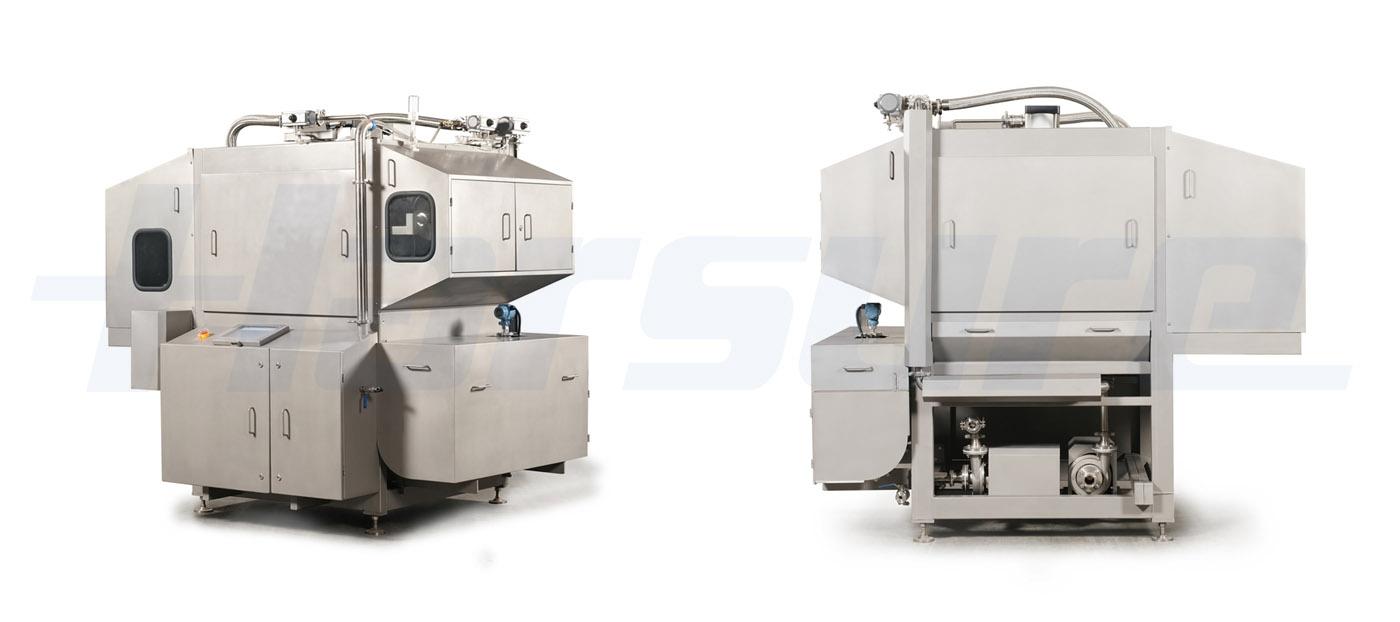

The Harsure Hot Oil Filter is the top-performing filter for fryers and roasters and is used by the world’s largest food manufacturers. The filter’s ability to remove 1 micron particles keeps frying oil in good condition indefinitely. The filter’s ability to discharge dry crumbs minimizes oil carryout.
The Harsure Filter is a fully automatic pressure filter. The dirty frying oil is pumped into the filter where disposable, non-woven filter media and the previously collected solids remove nearly all sediment (crumbs, flour, spices, etc.) larger than 1 micron. The sediment is removed before it can burn or scorch the hot oil, thus extending its life.
The Harsure Filter can be used for
●Continuous filtration of a single hot oil fryer or roaster to remove crumbs
●Continuous filtration of a single hot oil fryer or roaster to remove crumbs and Free Fatty Acids – FFA’s
●Batch filtration of multiple hot oil fryer or roasters to remove crumbs and FFA’s
No matter what filter size or system configuration selected, the Harsure Filter will remove nearly all particles larger than 1 micron in size along with FFA’s and discharge them as a dry cake.
Online Continuously Clean Oil and Dry Filtered Solids
Animation of Harsure Filter Hot Oil Filtration

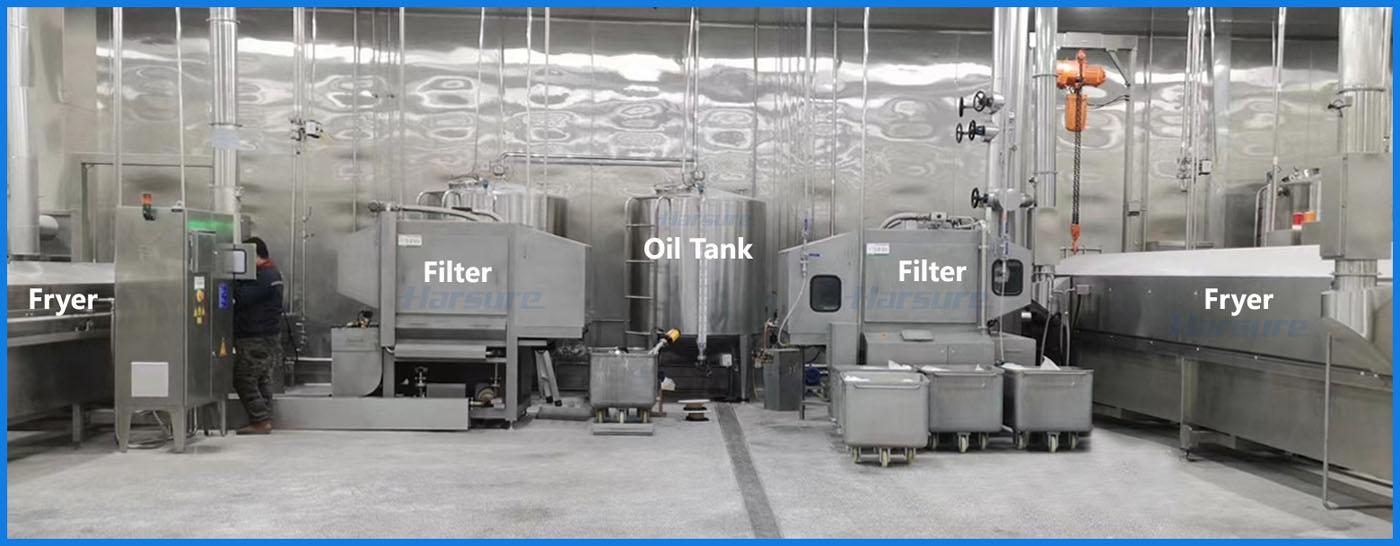

Food factory live shooting video: Harsure oil filter is placed on the side of the fryer.
| Technical Parameters | Metric Unit |
| Power | 6kW |
| Air Source Pressure | 0.6MPa |
| Filter Capacity | 100 – 160 liters/min |
| Particle Size for Filtration | 1μm |
| Average Filter Cloth Consumption | 1.2 meters/hour |
| Equipment Size LxWxH | 2300*1650*2100mm |
